Evidenziare
20L chocolate conche machine 380V
,carbon steel chocolate conche machine
,295kg industrial chocolate conche
-
Voltaggio380V 50HZ 3Phase o su misura
-
Dimensioni920 × 600 × 1110mm
-
Peso295kg
-
Energia2.1W
-
Capacità20l
-
Macinare finezza20 ~ 25Micron
-
Potenza motore principale1,5 kW
-
Potenza di riscaldamento elettrico0,6 kW
-
Velocità dell'assale principale93 giri / min
-
Tempo di macinatura8-10h
-
MaterialeAcciaio al carbonio o acciaio inossidabile
-
Materiale lamaAcciaio di manganese
-
Materiale della barra di rivestimentoAcciaio di manganese
-
Controllo della temperaturaAutomatico
-
Regolazione della pressionemanuale
-
Luogo di origineJiangsu, Cina
-
Quantità di ordine minimo1
-
Prezzo$3,600
20L Chocolate Conche Machine 380V Carbon Steel 295kg
Top Quality Mini Cocoa Chocolate Production Machine Chocolate Conche Machine 20 Liters
Product Overview
The chocolate conche refiner is a universal solution for making pure chocolate, compounds, coatings, pralines, truffles, and fillings. This 3-in-1 manufacturing solution combines raw materials mixing, refining, and conching processes in a single machine.
Key Features

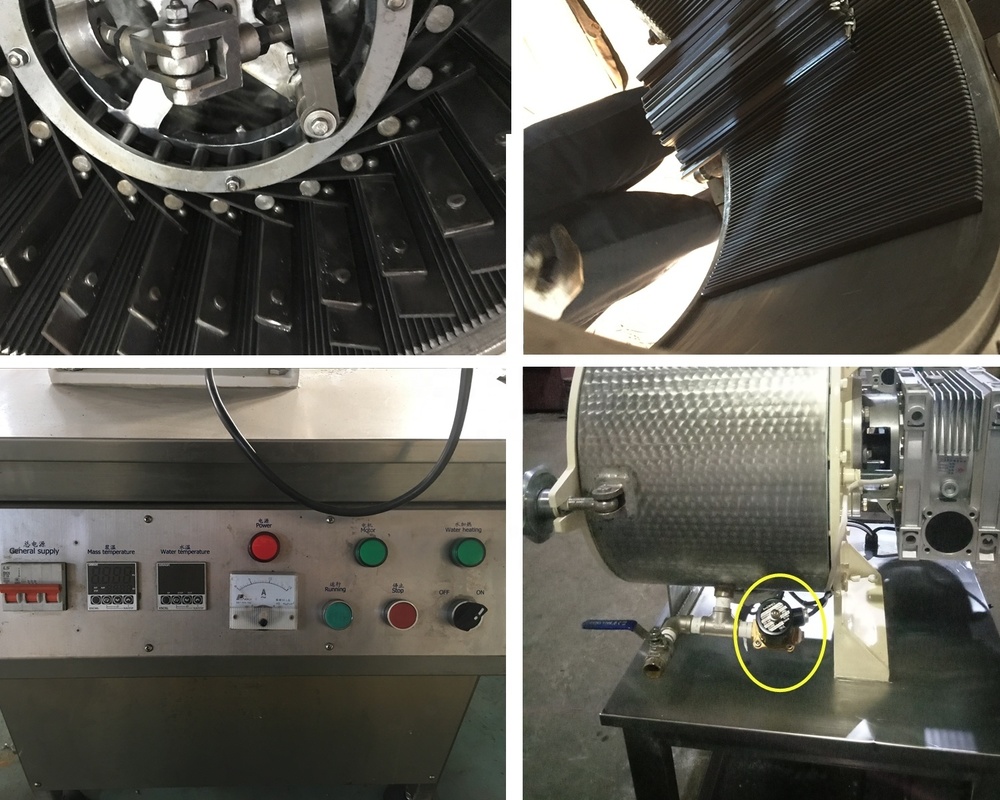

- Main shaft equipped with blades and manual pressure adjustment wheel for precise control
- Solenoid valve and automatic temperature water system for consistent quality

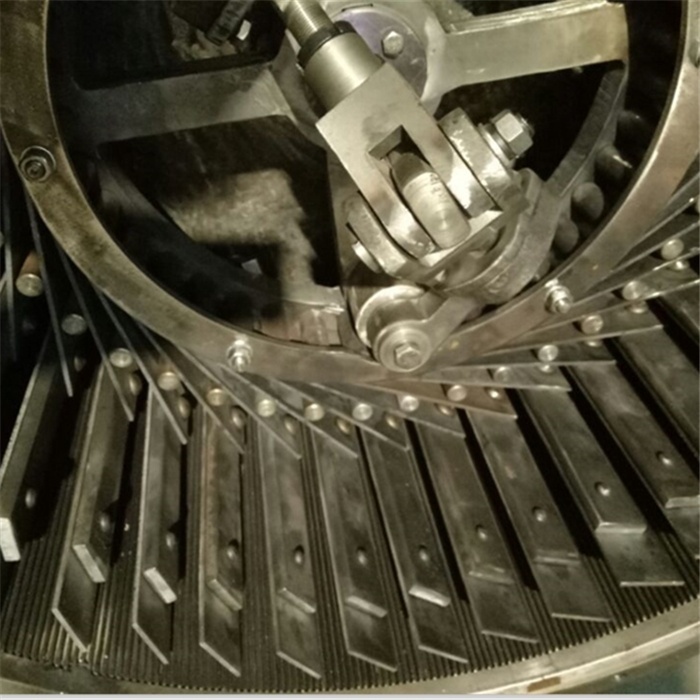

- Manganese steel blades and lining bars with extended lifespan
- Front-opening design for easy cleaning and maintenance
- Compact size ideal for chocolate shops and labs
Technical Specifications
| Model/Project | 20L | 100L | 500L | 1000L | 1500L | 2000L | 3000L |
|---|---|---|---|---|---|---|---|
| Maximum capacity (L) | 20 | 100 | 500 | 1000 | 1500 | 2000 | 3000 |
| Grinding Fineness (micron) | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 |
| Main Axle Rotating Speed (rpm) | 93 | 48 | 33 | 35 | 35 | 35 | 35 |
| Grinding time (h) | 8-10 | 12-16 | 16-22 | 16-22 | 16-22 | 16-22 | 16-22 |
| Main motor power (kw) | 1.5 | 5.5 | 15 | 22 | 30 | 37 | 45 |

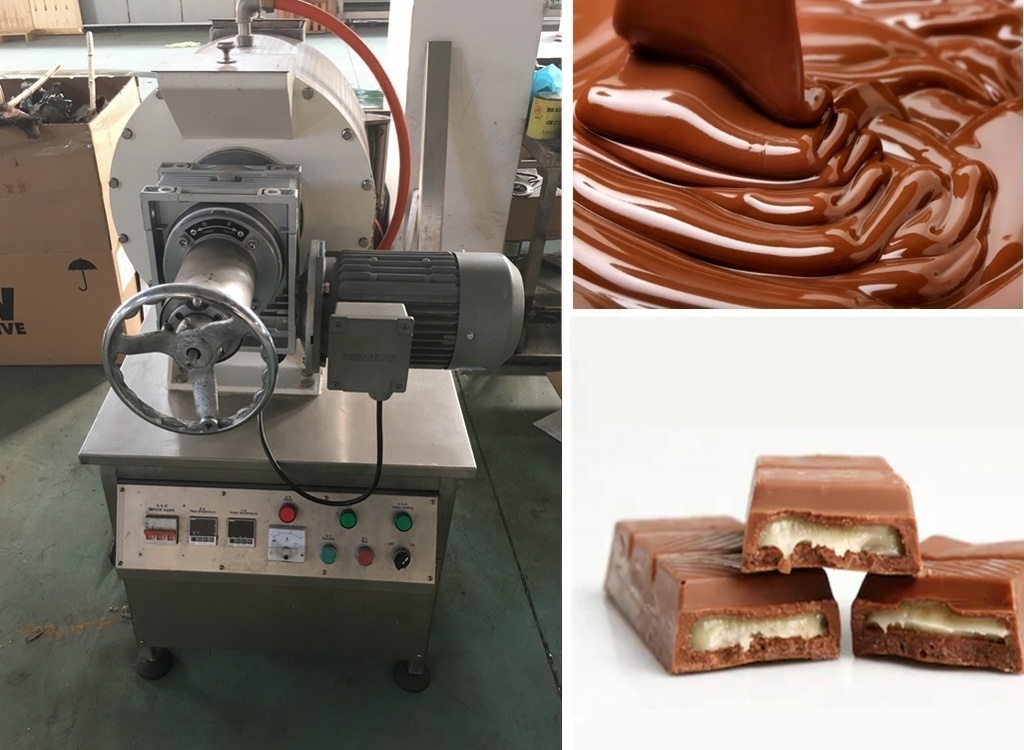

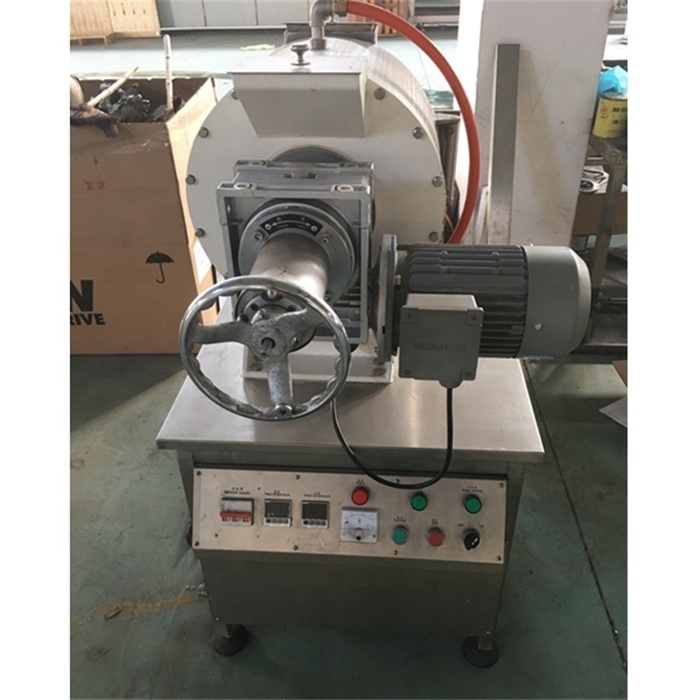

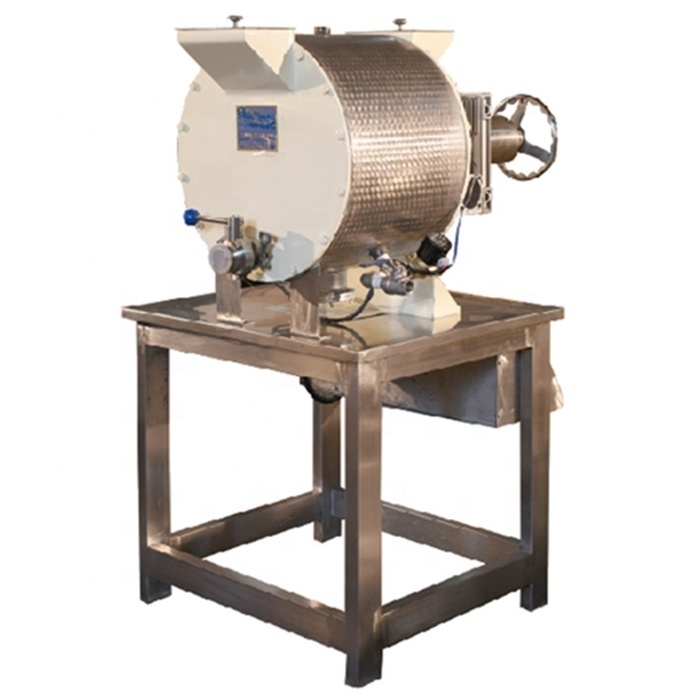

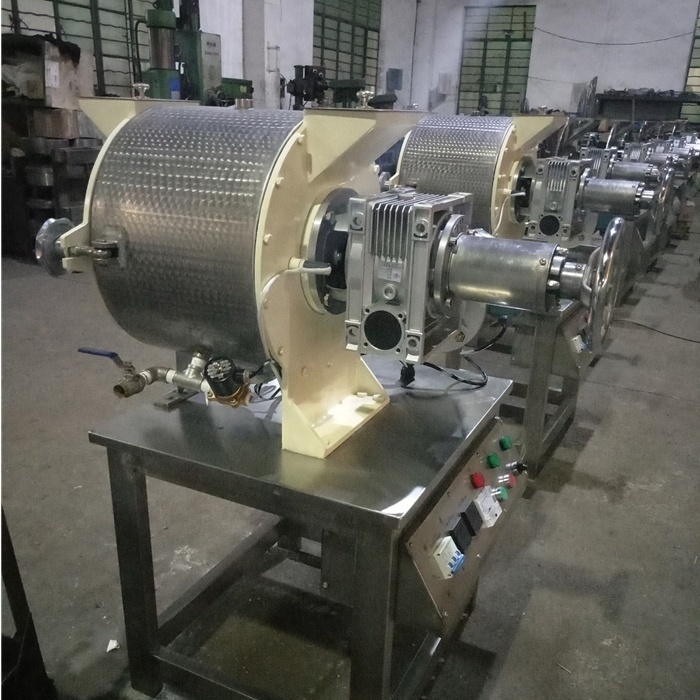

Product Images
Manufacturer Information
Suzhou Harmo Food Machinery, founded in Suzhou, China, is a professional chocolate machine supplier with complete manufacturing facilities. We export our machines worldwide and maintain strict quality control from raw materials to finished products.
Frequently Asked Questions
Q1: What is your payment term?
A1: 30% T/T as down payment, 70% balance prepaid after inspection and before shipping. We also accept irrevocable L/C at sight and West Union.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Can you accept CIF price?
A3: Yes, we have long-term cooperated forwarders who can provide reliable transportation service.
Q4: Do you provide installation and commissioning service?
A4: Yes, we can send our technician to install and commission the machine in your factory, including staff training.
Q5: Can you make customized machines?
A5: Yes, we can customize machines according to your requirements and provide turnkey projects.
